Pi-hole® is a DNS sinkhole that protects your devices from unwanted content, without installing any client-side software.
From the Pi-hole Overview:
-
Easy-to-install: versatile installer, takes less than ten minutes
-
Resolute: content is blocked in non-browser locations, such as ad-laden mobile apps and smart TVs
-
Responsive: speeds up browsing by caching DNS queries
-
Lightweight: runs smoothly with minimal hardware and software requirements
-
Robust: command line interface quality assured for interoperability
-
Insightful: responsive Web Interface dashboard to view and control Pi-hole
-
Versatile: optionally functions as DHCP server, ensuring all your devices are protected automatically
-
Scalable: capable of handling hundreds of millions of queries when installed on server-grade hardware
-
Modern: blocks ads over both IPv4 and IPv6
-
Free: open source software
Of Note
-
Cited from docs.pi-hole.net.
-
The Pi-hole setup offers 8 options for an upstream DNS Provider during the initial setup.
-
Utilize the Pi-hole command line interface with ease.
-
Pi-hole includes a caching and forwarding DNS server, now known as FTLDNS. After applying the blocking lists, it forwards requests made by the clients to configured upstream DNS server(s).
-
Updating is as simple as running the following command:
pihole -up
Pi-hole Installation
I installed Pi-hole on a Raspberry Pi 2 Model B running Raspbian Stretch (November 2018, 4.14 kernel).

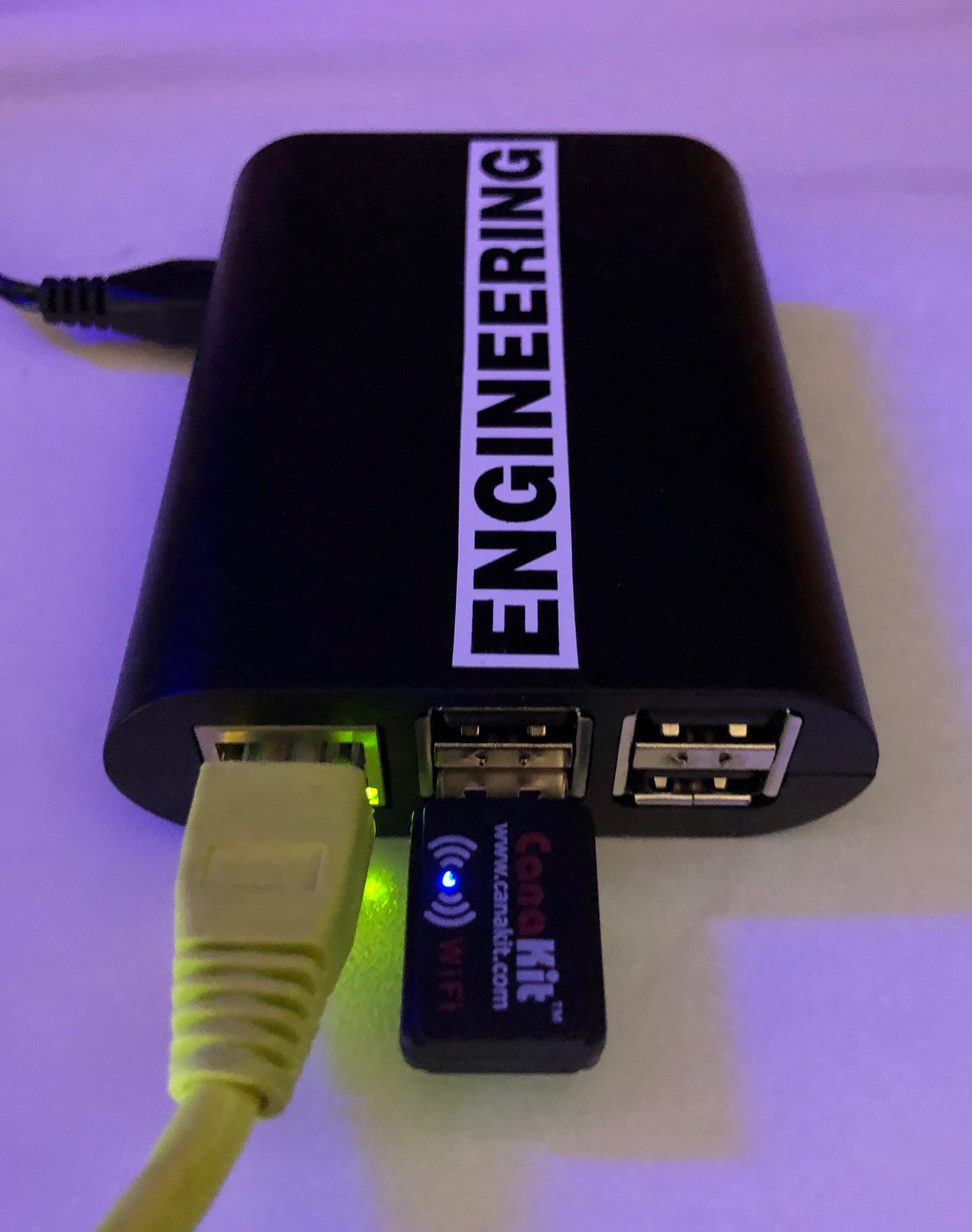

Figure 1: Pi-hole on Raspberry Pi 2 Model B
There a one step automated installation method for those who want to get started quickly and conveniently, using the following command:
curl -sSL https://install.pi-hole.net | bash
There are alternative installation methods if you’re not comfortable piping to bash.
Piloting Pi-hole
Once you’ve completed installation, browse to the IP addess you established during setup. After running Pi-hole for even a few hours, it will begin to serve you as designed, and well at that.

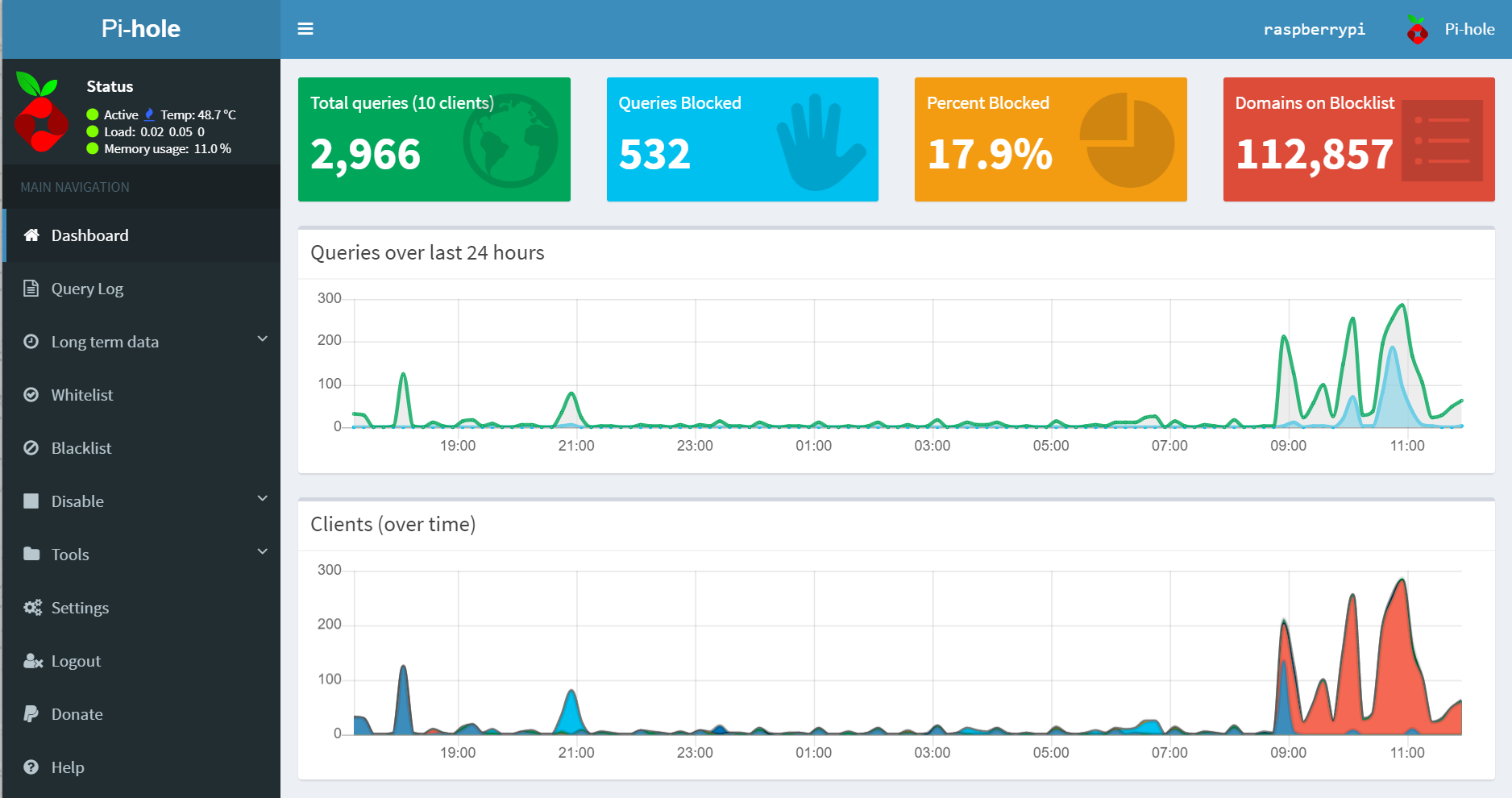

Figure 2: Pi-hole at work
Take note of the fact that 17.9% of traffic and 532 specific queries. Pi-hole’s Gravity script is key here: “Gravity is one of the most important scripts of Pi-hole. Its main purpose is to retrieve blocklists, and then consolidate them into one unique list for the built-in DNS server to use, but it also serves to complete the process of manual whitelisting, blacklisting and wildcard update. It is run automatically each week, but it can be invoked manually at any time.”
As seen in Figure 3, Pi-hole takes exception to a number of offending domains.

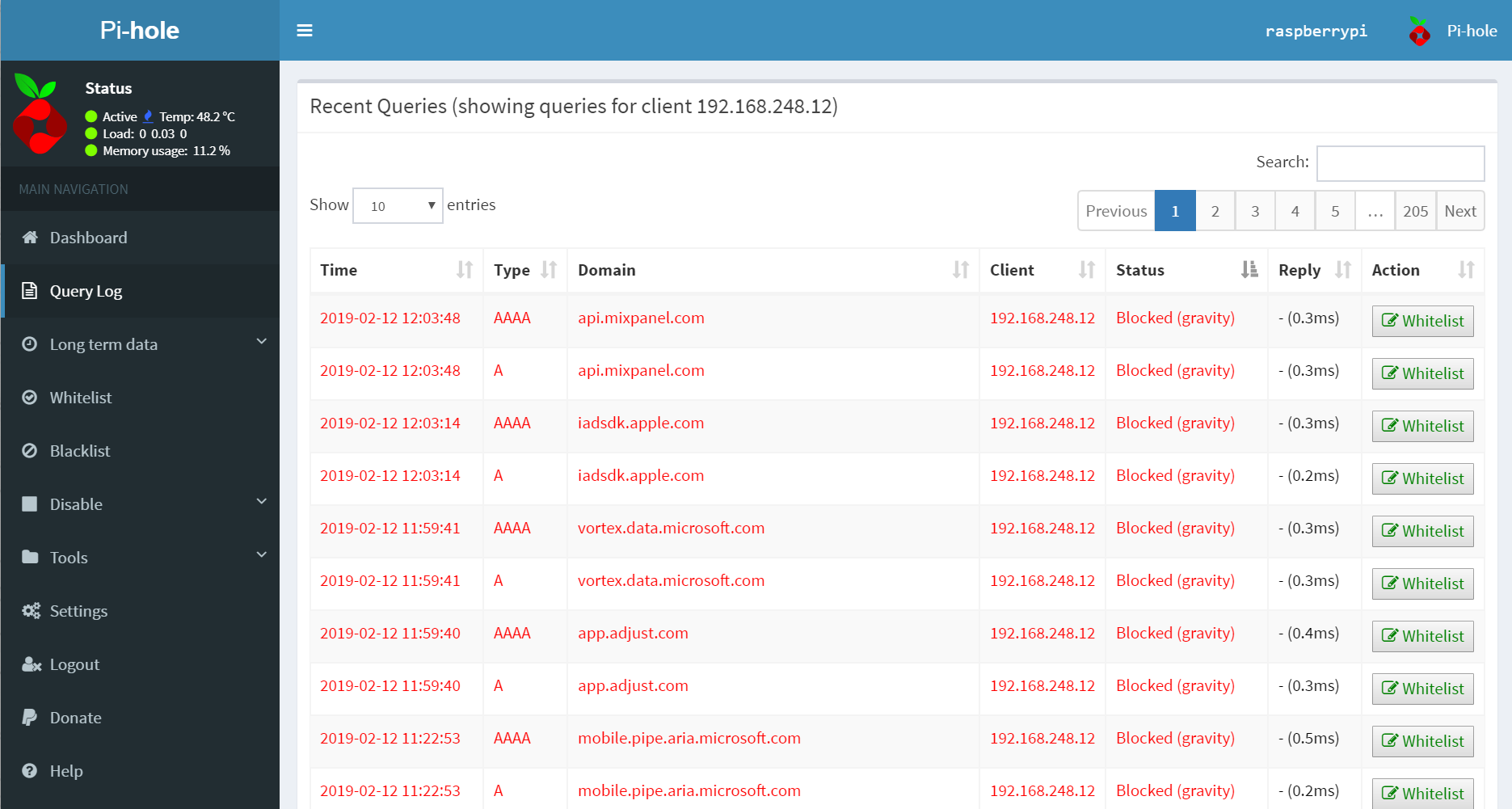

Figure 3: Pi-hole blocks
192.168.248.12 is my iPhone on my local network. You can see that between Apple, Microsoft, and other domains, there’s more than a bit of content in their ad streams that is flagged as less than desirable via Pi-hole’s Block Lists.
Enjoy the use and benefits of Pi-hole, I’d really like to hear about your success stories, and how you’re running Pi-hole (what hardware platforms?). Let me know via Twitter or email. Cheers…until next time.
